PyEuclid¶

A versatile formal plane geometry system in Python

PyEuclid provides reasoning, deduction, and proof generation over plane geometry problems. It is derived from the upstream project by Zhaoyu Li and maintained here by Kelly J Davis.

For full source and issues, see the repository.

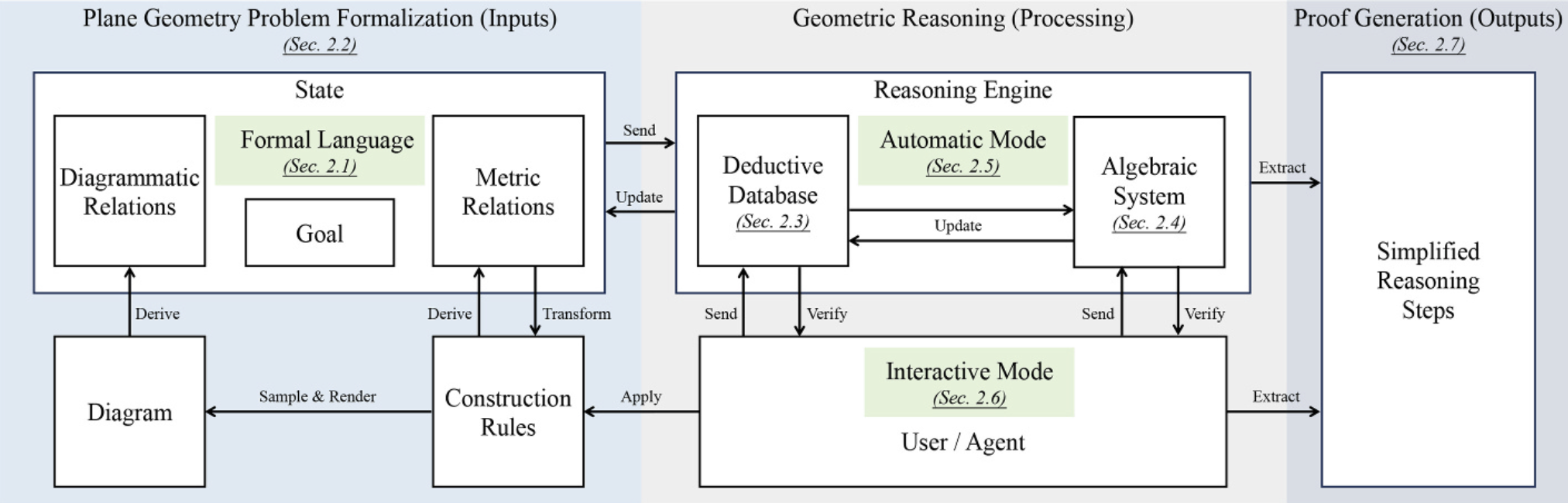

Architecture

Installation¶

pip install pyeuclid

Datasets (data/) and cached artifacts (cache/, cache.tar.gz) are not bundled with the PyPI package. Install from source if you need the benchmark data for experiments.

Quickstart¶

Minimal example to load a geometry problem and attempt a proof:

from pyeuclid.formalization.state import State
from pyeuclid.formalization.relation import NotCollinear, Between
from pyeuclid.engine.inference_rule import inference_rule_sets
from pyeuclid.engine.deductive_database import DeductiveDatabase
from pyeuclid.engine.algebraic_system import AlgebraicSystem
from pyeuclid.engine.proof_generator import ProofGenerator
from pyeuclid.engine.engine import Engine

# Define a tiny synthetic problem
state = State()
state.load_problem(
    conditions=[NotCollinear("A", "B", "C"), Between("A", "B", "C")],
    goal=None,
)

deductive_database = DeductiveDatabase(state, outer_theorems=inference_rule_sets["basic"])
algebraic_system = AlgebraicSystem(state)
proof_generator = ProofGenerator(state)
engine = Engine(state, deductive_database, algebraic_system)

engine.search()
if state.complete():
    proof_generator.generate_proof()
    proof_generator.show_proof()
else:
    print("No proof found in this quick example.")

Publishing¶

See PUBLISHING.md for tagging and automated PyPI release instructions. Docs are published via GitHub Pages from the gh-pages branch.

License¶

MIT License. See LICENSE.
